SSD Storage
2.8GB per second
Specifications

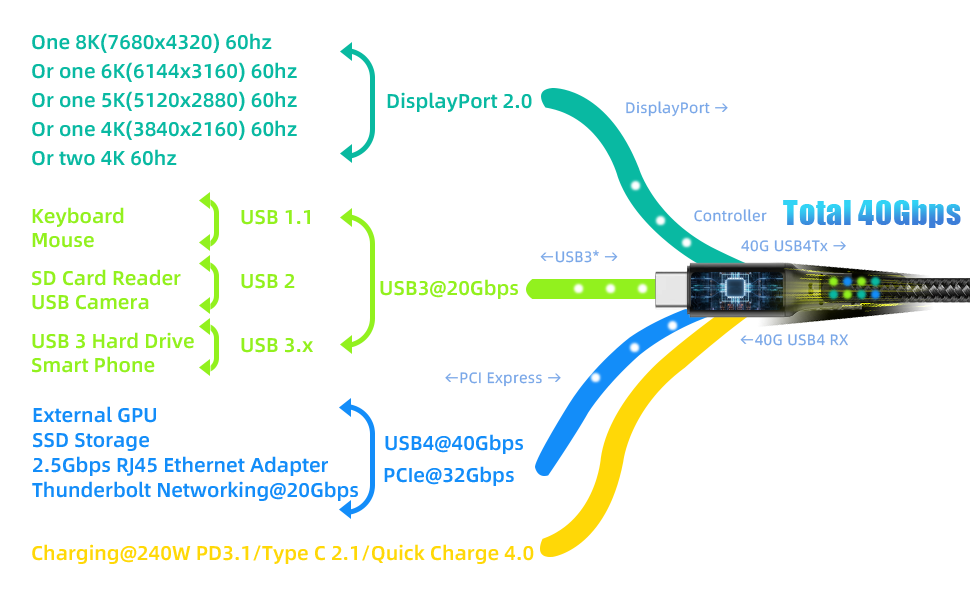

All IN ONE

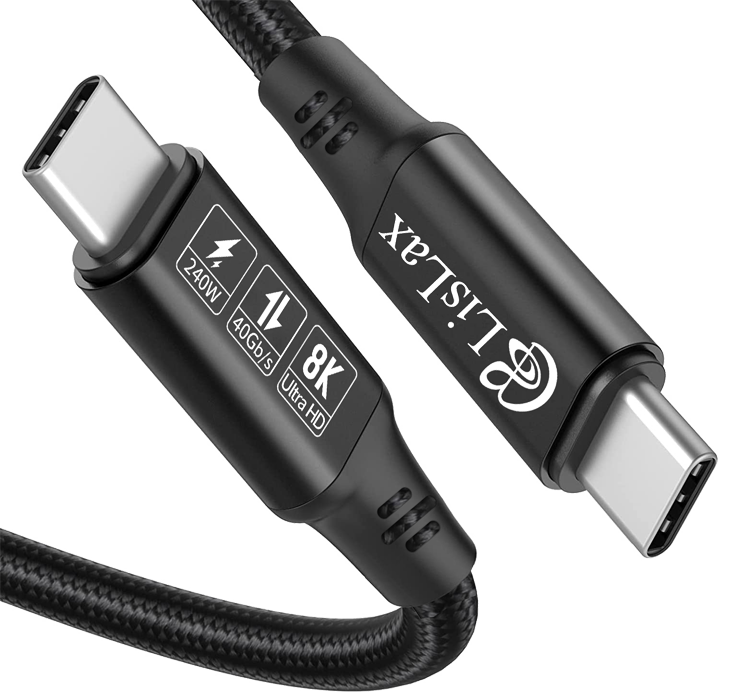

LisLax Thunderbolt 4/3 USB4 Type C To Type C Cable. It can support multiple types of data transmission, support the latest Intel, Apple Silicon M1 / M2 and AMD CPU, and truly realize all in one. All specifications are backward compatible. In addition to data transmission, it also supports charging protocols up to 240W (i.e. 48V / 5A). For details, please see the following PDF file.
Download PDFBUILD QUALITY
01

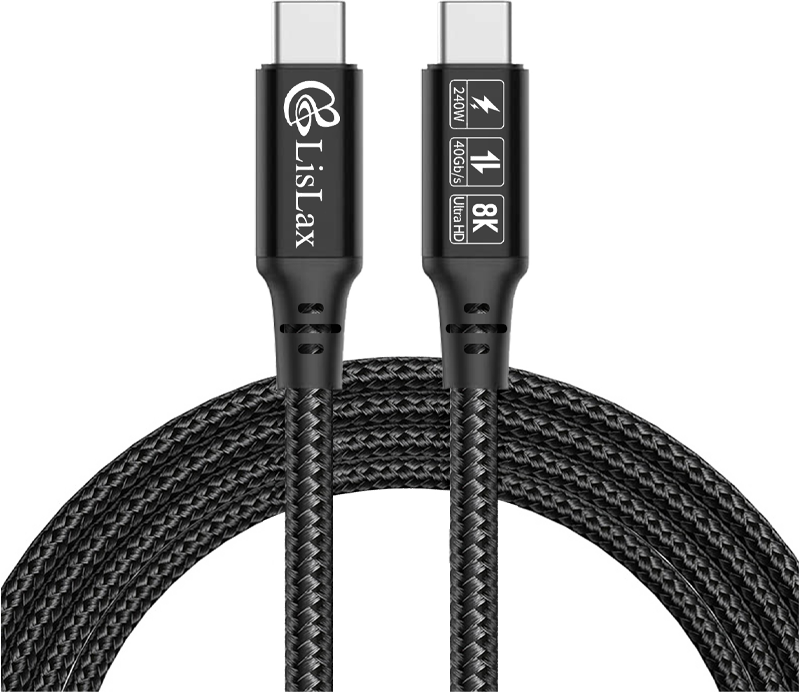

Nylon Braided Wire
Precision nylon textile mesh, anti-oxidation, easy to deal with bending, improve the breaking factor, flexible and more durable, no entanglement. Plastic tail reinforcing protection.
02
Pressure Test
Each wire has undergone stress tests such as swing testing, hoisting testing, plug testing, TDR high frequency testing, transmission testing, etc.
03
Anti-Interference
Electromagnetic shielding, to ensure high-speed signal integrity. The innermost layer is Copper, the second layer of insulator Foaming PE, the third layer of Aluminum foil shield, the fourth layer is Mylar Insulation, the fifth layer is Cotton Thread, the sixth layer: Tinned Copper. The seventh layer: PVC.
04
E-Masker Chip
With the support of the security chip, it can correctly identify the device and handshake the connection. Power Charge, ensure current balance, automatically filter hazards.

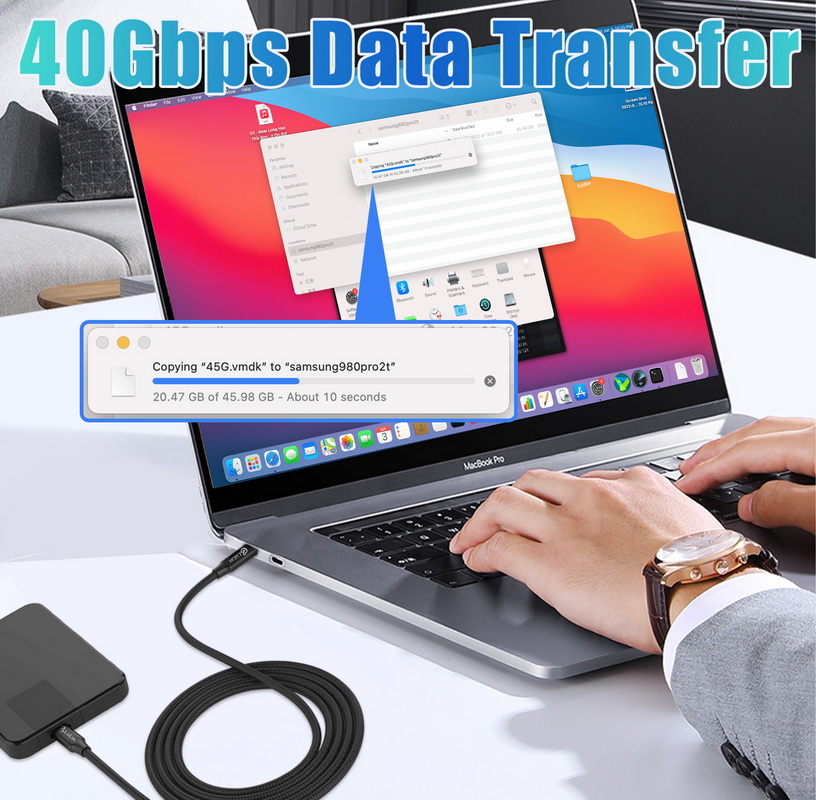

transfer speed
The storage uses PCIe channel, and its peak bandwidth is 32Gbps , that is, 32Gbps / 8 = 4Gbyte per second. The peak bandwidth of thunderbolt networking is 20Gbps, that is, 20Gbps/8=2.5Gbyte per second.
8K 60HZ Display
Monitor which support thunderbolt connect to laptop directly. DisplayPort data can be transferred over USB C cable, so a dock connects to TV via DisplayPort or HDMI cable, which can make TV being the second monitor of laptop.

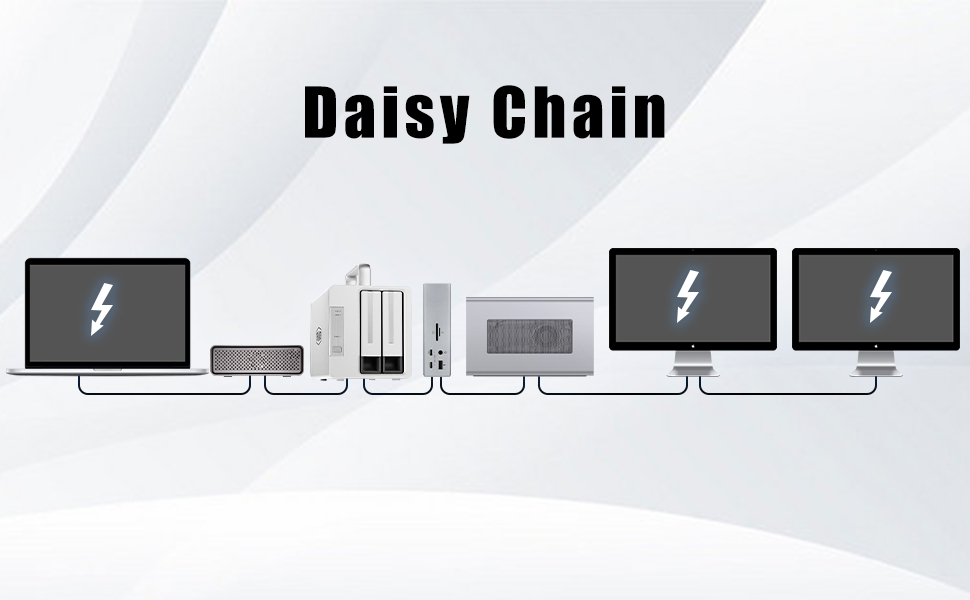

Daisy chain
It refers to interconnecting multiple devices with thunderbolt USB C interfaces, provided that the intermediate interconnected devices have at least two thunderbolt USB C interfaces. It must be noted that the display must be placed at the end of the interconnection. The maximum number of interconnected devices is 6, and the maximum number of displays is 2. Daisy Chain intermediate interconnection nodes are a bit like hubs in the network. Its common applications are DAS and multi – display.

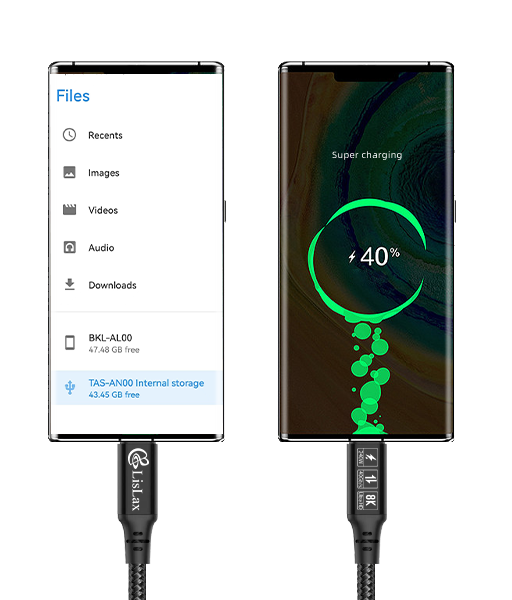

For smartphone
interconnection
At present, most mobile phones do not support thunderbolt or USB4 standards. When two smart phones are connected, LisLax USB C cable is downgraded to USB 3.x or even USB 2(depend on the smart phone). At this time, one side can charge the other side. For example, in Android, reverse charging can be set through the pull-down menu.
For example, on Android, you can see the shared directory of another mobile phone in the file browser through the drop-down menu setting.
